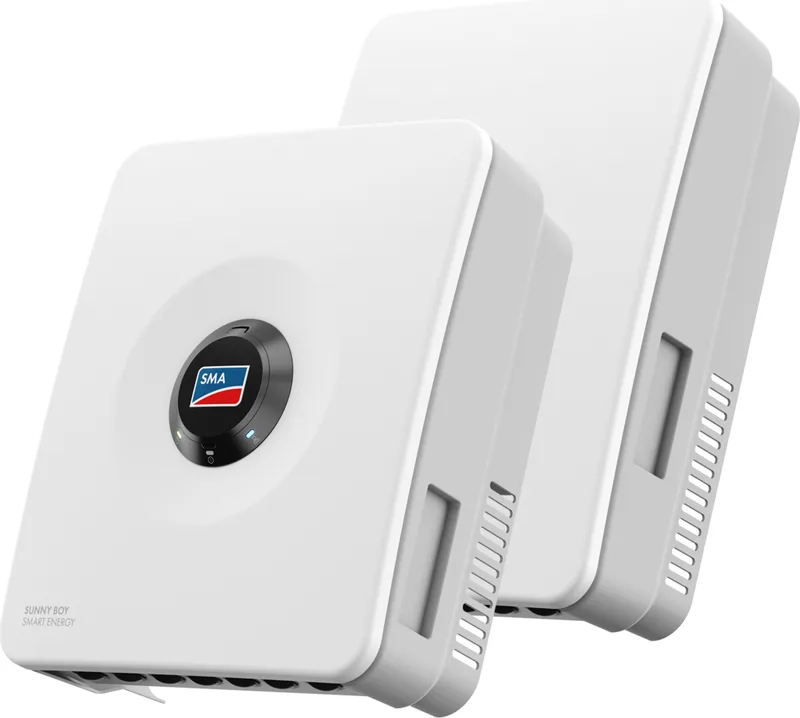

SMA Sunny Boy Smart Energy-US Hybrid Inverter

SMA Sunny Boy Smart Energy-US - Overview

The Sunny Boy Smart Energy-US is SMA's current single-phase residential hybrid inverter for the American market, and it replaces two boxes with one. Until recently an SMA battery system meant a Sunny Boy string inverter plus a separate Sunny Boy Storage battery inverter. SMA's own product page now says it no longer sells the Storage unit, and the Smart Energy-US is what's left on the shelf: PV strings and a battery port in a single wall-mounted housing, sold in six sizes from 3.8 to 11.5 kW.

One caveat before the numbers. I haven't installed or run this inverter, and nobody on this site has. Everything below comes from SMA's datasheet (SBSE-US-DS-en-24), SMA's technical information for approved batteries (SBSE-US-Batteries-TI-en-11) and SMA's US product page, read side by side. Where those sources were silent, this page is too.

Models and Availability

The datasheet covers six classes: 3.8, 4.8, 5.8, 7.7, 9.6 and 11.5 kW. The first four were the shipping range when that datasheet was printed, and the 9.6 and 11.5 carry an "Upcoming" asterisk in it. That's out of date. SMA America's product page now lists all six under "Now shipping", and a June 2025 post on SMA's US blog describes the 9.6 and 11.5 as available with UL certification. US distributors list them with stock.

SMA doesn't publish a price. What distributors charge varies a lot by seller. On 2026-10-09 I saw the SBSE3.8-US-50 at $1,758 (RES Supply) and $1,854 (US Solar Supplier), the 7.7 at $2,649 (The Solar Store), the 9.6 at $3,046 and the 11.5 at $3,443 (both US Solar Supplier). Those are inverter-only prices, before batteries, backup hardware or labor, and they will have moved by the time you read this.

PV Side: Three or Four Trackers, 200% Oversizing

The 3.8 to 7.7 classes run three independent MPP trackers with one string input each. The 9.6 and 11.5 add a fourth. Max DC voltage is 600 V, the rated MPP window runs from 91 to 480 V on the 3.8 and narrows to 180 to 480 V on the 7.7, and each tracker takes 15 A usable current with a 30 A short-circuit limit. SMA's ShadeFix handles string-level shade without optimizers.

The headline figure is 200% DC/AC design capability. A 3.8 kW unit accepts up to 7,680 Wp of panels, a 7.7 accepts 15,360 Wp. Is a 2:1 ratio sensible? On a west-facing roof or in a climate with weak winter sun, clipping a few midday hours costs you far less than the extra panels earn on every other hour. On a south-facing roof in Arizona, I'd stay nearer 1.3 and spend the difference on battery.

Peak efficiency is 98.1%, and CEC weighted efficiency is 96.5% to 97.5% depending on class and AC voltage. Compare that with the 97.7% peak and 97.0% CEC of the Sunny Boy 6.0-US it succeeds, and the gain is real but small. Don't buy this inverter for the efficiency row.

Battery Side: One Approved Family

The datasheet names a single battery family: BYD Battery-Box Premium HVL in 12.0 to 32.0 kWh sizes, listed to UL 9540 as a system with the inverter. The battery input accepts 90 to 500 V and 30 A in each direction. Maximum charge power is 10,000 W on every class, while discharge power scales with the inverter: 4,042 W on the 3.8, 5,053 W, 6,063 W, 8,084 W, and 10,000 W on the 9.6 and 11.5.

Read that again. A 3.8 kW inverter can push 10 kW into a battery from the array, but only hands back about 4 kW. That's a fast-charging design that suits a big oversized array and a small evening load, and it's a poor fit for a house that wants to run a heat pump and an oven off the battery at 6 p.m.

Mind the pairing, too. SMA's approved-battery document I read covers the 3.8, 4.8, 5.8 and 7.7 classes with the HVL, and says nothing about the 9.6 and 11.5. The HVL is also a different product line from the HVS reviewed on this site as the BYD Battery-Box Premium HVS, so a compatibility list for one doesn't transfer to the other. Ask your installer for the exact system designation in writing.

Backup Power: Secure and Select

SMA Backup Secure is the successor to the Secure Power Supply outlet on the older Sunny Boy. It delivers 1,920 W at 120 V, works with or without a battery, and is activated manually. The datasheet adds a footnote that matters: installations bound by NEC rapid shutdown rules need the separate SMA Backup Start module before Backup Secure will work at all.

SMA Backup Select is a different animal. It's an external box that, per SMA's US page, switches automatically and feeds selected loads: up to 3,840 W with the 3.8 to 7.7 classes and up to 5,760 W with the 9.6 and 11.5, across five 15 A / 120 V outlets and two 20 A / 120 V circuits. I couldn't find a published switchover time for either option. Neither is whole-home backup, and the datasheet doesn't claim it is.

Hardware, Monitoring and Warranty

The enclosure is rated IP65 / Type 3R and cools by natural convection with no fans, which makes it quiet and means there's nothing to clog. It weighs 38.6 lb in the smaller housing and 50 lb in the taller one, a big drop from the 57 lb of the older Sunny Boy 6.0-US. The operating range is -25 C to +60 C "with derating", and that is the whole statement: no curve, no onset temperature. If the unit is going on a hot west wall, ask SMA or your installer what power you keep at 45 C.

Commissioning runs through the SMA 360 app on the installer's phone, and owners get Sunny Portal powered by ennexOS. The datasheet lists an integrated system manager and a built-in SunSpec rapid shutdown transmitter, so neither needs its own box. The warranty is 10 years, extendable by 5, 10 or 15 years.

Who Should Consider It

A homeowner with a complex roof, a battery already on the shopping list and an installer who knows SMA's commissioning flow. The three or four trackers and the 200% ratio are the strongest reasons to shortlist it. It can also run PV-only today and take a battery later, which spreads the cost.

Who shouldn't? Anyone who wants a battery that isn't a BYD HVL, or who needs a published derating curve before signing. My opinion: at the $2,649 I saw for the 7.7, the price is fair for a hybrid, but the thin thermal disclosure and the single battery partner keep it a notch behind Fronius for design work. The battery inverter comparison lays the three documents out side by side.

Key Advantages

• One box for PV and battery - fewer wall-space and electrical upgrades than a string inverter plus a battery inverter
• 200% DC/AC design capability - up to 23,040 Wp on the 11.5
• Three or four MPP trackers - mixed roof faces without optimizers
• 98.1% peak efficiency - SMA's published peak figure, 0.4 points above the old Sunny Boy 6.0-US
• Built-in SunSpec rapid shutdown transmitter - one less box on the wall
• IP65 and 38.6 lb on the smaller classes - lighter than the old Sunny Boy 6.0-US

The Catch

• One approved battery family - BYD Battery-Box Premium HVL only
• No published derating curve - "with derating" is all the datasheet says
• Backup Secure is manual and needs Backup Start in NEC rapid shutdown installations
• Discharge power is low on the small classes - 4,042 W on the 3.8
• No manufacturer price - distributor quotes differ by hundreds of dollars

---
